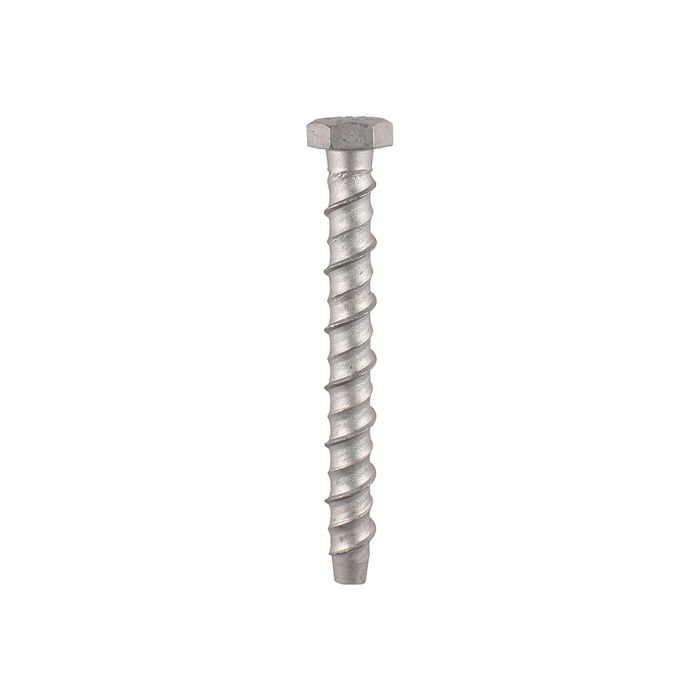

10mm x 130mm Multi Fix Bolt Hex Head MF10130
SKU
JPL-40004530
10mm x 130mm Multi Fix Bolt Hex Head MF10130
Product Features/Specifications:
- Stress-free, non-expansion through fixing for reliable anchoring
- Suitable for concrete, brick, stone, wood, and concrete block
- Designed to replace traditional anchors including through bolts, shield, sleeve, and drop-in types
- Strong hex head design for ease of installation and secure fixing
Detailed Product Benefits:
- Corrosion Resistant: TIMCO micro plating technology provides superior corrosion resistance and enhances installation speed
- High Performance: High-Low parallel threads ensure easy insertion and high pull-out values for maximum strength
- Flexible Fixing: Removable and adjustable non-expansion design makes it versatile on-site
- Unique Thread Design: Concave thread configuration delivers exceptional grip and holding power
- Safety Compliant: All-steel, non-flammable fixing conforms to BS 7671:18th Edition wiring regulations, ensuring fixings will not prematurely collapse in the event of a fire
- Efficient Installation: 17mm socket size, fixture hole diameter of 12.0mm, and minimum drill depth of 70mm for precise application
- Trusted Alternative: Specifically designed to replace traditional expansion anchors with a safer, quicker, and more reliable solution
Applications and Versatility:
The 10mm x 130mm Multi Fix Bolt is ideal for heavy-duty anchoring in construction, electrical, and mechanical applications. Perfect for securing structural steel, cable trays, trunking, pipe supports, machinery, timber frames, and brackets. Suitable for use across a wide range of base materials including concrete, stone, brick, and blockwork, making it a go-to choice for professionals.
Technical Specifications:
- Product Code: MF10130
- Size: 10mm x 130mm
- Head Type: Hex head
- Socket Size: 17mm
- Fixture Hole Diameter: 12.0mm
- Minimum Drill Hole Depth: 70mm
- Material: All steel, non-flammable
- Coating: TIMCO micro plating technology (enhanced corrosion resistance)
- Standard Compliance: BS 7671 18th Edition
- Box Quantity: Supplied in trade pack (quantity may vary)
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Show more +
10mm x 130mm Multi Fix Bolt Hex Head MF10130
Product Features/Specifications:
- Stress-free, non-expansion through fixing for reliable anchoring
- Suitable for concrete, brick, stone, wood, and concrete block
- Designed to replace traditional anchors including through bolts, shield, sleeve, and drop-in types
- Strong hex head design for ease of installation and secure fixing
Detailed Product Benefits:
- Corrosion Resistant: TIMCO micro plating technology provides superior corrosion resistance and enhances installation speed
- High Performance: High-Low parallel threads ensure easy insertion and high pull-out values for maximum strength
- Flexible Fixing: Removable and adjustable non-expansion design makes it versatile on-site
- Unique Thread Design: Concave thread configuration delivers exceptional grip and holding power
- Safety Compliant: All-steel, non-flammable fixing conforms to BS 7671:18th Edition wiring regulations, ensuring fixings will not prematurely collapse in the event of a fire
- Efficient Installation: 17mm socket size, fixture hole diameter of 12.0mm, and minimum drill depth of 70mm for precise application
- Trusted Alternative: Specifically designed to replace traditional expansion anchors with a safer, quicker, and more reliable solution
Applications and Versatility:
The 10mm x 130mm Multi Fix Bolt is ideal for heavy-duty anchoring in construction, electrical, and mechanical applications. Perfect for securing structural steel, cable trays, trunking, pipe supports, machinery, timber frames, and brackets. Suitable for use across a wide range of base materials including concrete, stone, brick, and blockwork, making it a go-to choice for professionals.
Technical Specifications:
- Product Code: MF10130
- Size: 10mm x 130mm
- Head Type: Hex head
- Socket Size: 17mm
- Fixture Hole Diameter: 12.0mm
- Minimum Drill Hole Depth: 70mm
- Material: All steel, non-flammable
- Coating: TIMCO micro plating technology (enhanced corrosion resistance)
- Standard Compliance: BS 7671 18th Edition
- Box Quantity: Supplied in trade pack (quantity may vary)
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Features
| Manufacturer Name | T I MIDWOOD & CO LTD |
|---|---|
| MPN | MF10130 |
| Product Colour | Silver |
| Product Net Weight kg | 4.44 |
| Manufacturer Bullet 1 | TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation |
| Manufacturer Bullet 2 | High-Low parallel threads for ease of insertion and high pull-out values |
| Manufacturer Bullet 3 | Removable & adjustable non-expansion through fixing |
| Manufacturer Bullet 4 | Unique concave thread configuration |
| Product Size | 10.0 x 130 |
| Manufacturer Bullet 5 | All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire. |
| Packaged Length mm | 194mm |
| Manufacturer Bullet 6 | Socket Size mm : 17 |
| Packaged Width mm | 136mm |
| Packaged Height mm | 92mm |
| Manufacturer Bullet 7 | Designed to replace traditional expansion anchors |
| Pallet Cage Width mm | 282mm |
| Manufacturer Bullet 8 | Fixture Hole Diameter mm : 12.0 |
| Pallet Cage Length mm | 396mm |
| Pallet Cage Height mm | 110mm |
| Manufacturer Bullet 9 | Min Drill Hole Depth mm : 70 |
| Pallet Cage Weight kg | 18.04 |
| Pallet Cage Barcode | 5056110874876 |
