Body & Arm 2-4 Door Closer with Backcheck

Body & Arm 2-4 Door Closer with Backcheck

Product Features/Specifications:

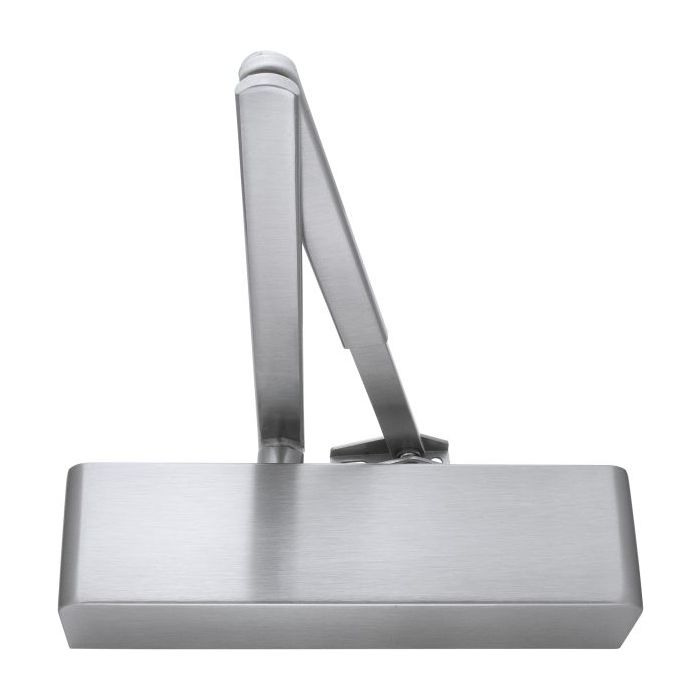

The ARRONE AR1500 overhead door closer offers adjustable power size 2–4, allowing flexibility through spring tension adjustment. It provides controlled closing speed, backcheck, and latching functions for smooth and safe operation. Featuring a radiused cover, this closer supports maximum door widths of 1,100mm and door weights up to 80kg. Suitable for multiple arm applications, it can be installed in Fig 1 (door mount pull), Fig 6 (door mount push), and Fig 61 (transom mount pull) positions.

• Tested to BS EN 1154:1997 requirements
• Fire tested to BS EN 1634 Part 1: suitable for 30, 60, 120 minutes on timber fire doors and 240 minutes on steel fire doors
• CE Marked: AD0124 | UKCA Marked: AD7683 | Certifire Approved: CF294
• CE DOP: HUK0001 | UKCA DOP: HUK0001-UK
• Meets accessibility recommendations of BS 8300 and ADM when fitted to compliant doors (min. width 938mm, Fig 1)

Applications and Versatility:

The AR1500 is ideal for use in commercial, public, and residential buildings where controlled, safe, and compliant door closing is essential. Suitable for both timber and steel fire doors, it offers versatility across a wide range of door sizes and applications while meeting strict building and safety standards.

Features & Benefits:

• Adjustable power size (2–4) for flexible performance
• Functions include closing speed, backcheck, and latching control
• Supports multiple mounting positions (Fig 1, Fig 6, Fig 61)
• Fire tested and approved for up to 240 minutes on steel doors
• Radiused cover for a professional, discreet finish
• CE, UKCA, and Certifire certified for compliance and peace of mind
• Can support accessibility standards (BS 8300 & ADM) when installed to specification

Technical Specifications:

• Brand: ARRONE
• Model: AR1500
• Type: Overhead Door Closer
• Finish: SSS (Satin Stainless Steel)
• Power Size: Adjustable 2–4 (spring tension)
• Max Door Width: 1,100mm
• Max Door Weight: 80kg
• Arm Application: Fig 1 (door pull), Fig 6 (door push), Fig 61 (transom pull)
• Functions: Closing speed, backcheck, latching
• Cover: Radiused cover
• Fire Rating: 30, 60, 120 minutes (timber), 240 minutes (steel)
• Certification: BS EN 1154:1997 | BS EN 1634 Part 1 | CE Marked (AD0124) | UKCA Marked (AD7683) | Certifire Approved (CF294)
• CE DOP: HUK0001 | UKCA DOP: HUK0001-UK
• Accessibility: Supports BS 8300 & ADM when installed to compliant door width (938mm minimum, Fig 1)

Additional Information:

This product is easy to move by hand, making installation and transportation
hassle-free.
