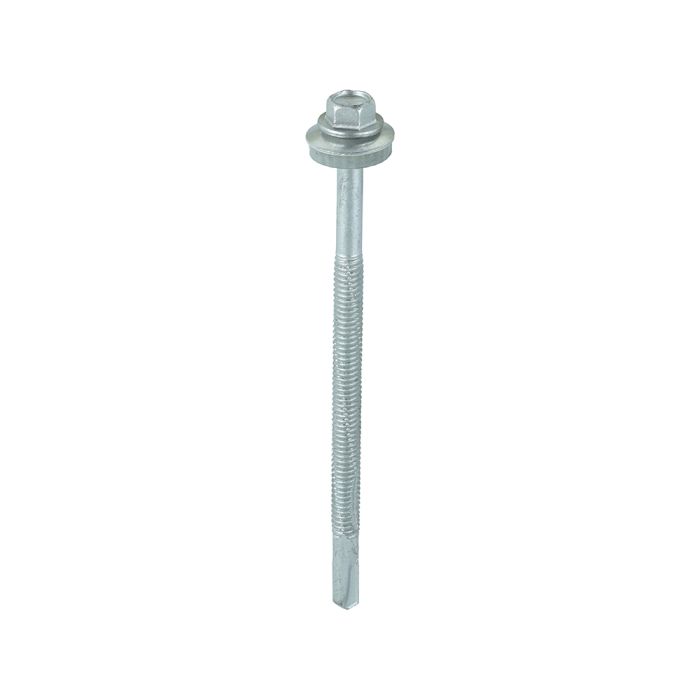

Heavy Section Self Drill Screw 5.5 x 100 C/W Washer H100W16B
SKU
JPL-40004506
Heavy Section Self Drill Screw 5.5 x 100 C/W Washer H100W16B
Product Features/Specifications:
- Designed for fixing metal to heavy section steel (max. 12mm)
- Self-drilling point eliminates the need for pre-drilling
- Partially threaded for improved clamping and holding power
- Integrated fixed washer for secure fastening
- Exterior plating for enhanced durability and corrosion resistance
Detailed Product Benefits:
This heavy-duty self-drill screw is built to perform in demanding conditions. The No.5 self-drilling point enables fast, efficient penetration into heavy section steel, reducing installation time. A fixed washer (12mm diameter) provides stability and a secure seal, while the partially threaded shank ensures superior grip and clamping strength. The exterior plating offers exceptional corrosion resistance, tested to withstand 500 hours of salt-spray exposure, making it a durable choice for both indoor and outdoor use. With an effective thread length of 53mm (partially threaded) and a maximum drilling capacity of 12mm, this screw delivers strength, reliability, and long-lasting performance.
Applications and Versatility:
Perfect for structural steelwork and fabrication projects, this screw is widely used in:
- Attaching cladding and sheet metal to heavy section steel frameworks
- Industrial and commercial construction projects
- Engineering applications requiring robust, corrosion-resistant fixings
Technical Specifications:
- Size: 5.5 x 100mm
- Washer Diameter: 12.00mm (fixed)
- Point Type: Self-Drilling No.5
- Thread: Partially threaded
- Effective Thread Length: 53mm (P/T)
- Maximum Drilling Thickness: 12mm
- Finish: Exterior plating, corrosion resistant (500 hours salt-spray tested)
- Application: Metal to heavy section steel fixing
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Show more +
Heavy Section Self Drill Screw 5.5 x 100 C/W Washer H100W16B
Product Features/Specifications:
- Designed for fixing metal to heavy section steel (max. 12mm)
- Self-drilling point eliminates the need for pre-drilling
- Partially threaded for improved clamping and holding power
- Integrated fixed washer for secure fastening
- Exterior plating for enhanced durability and corrosion resistance
Detailed Product Benefits:
This heavy-duty self-drill screw is built to perform in demanding conditions. The No.5 self-drilling point enables fast, efficient penetration into heavy section steel, reducing installation time. A fixed washer (12mm diameter) provides stability and a secure seal, while the partially threaded shank ensures superior grip and clamping strength. The exterior plating offers exceptional corrosion resistance, tested to withstand 500 hours of salt-spray exposure, making it a durable choice for both indoor and outdoor use. With an effective thread length of 53mm (partially threaded) and a maximum drilling capacity of 12mm, this screw delivers strength, reliability, and long-lasting performance.
Applications and Versatility:
Perfect for structural steelwork and fabrication projects, this screw is widely used in:
- Attaching cladding and sheet metal to heavy section steel frameworks
- Industrial and commercial construction projects
- Engineering applications requiring robust, corrosion-resistant fixings
Technical Specifications:
- Size: 5.5 x 100mm
- Washer Diameter: 12.00mm (fixed)
- Point Type: Self-Drilling No.5
- Thread: Partially threaded
- Effective Thread Length: 53mm (P/T)
- Maximum Drilling Thickness: 12mm
- Finish: Exterior plating, corrosion resistant (500 hours salt-spray tested)
- Application: Metal to heavy section steel fixing
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Features
| Manufacturer Name | T I MIDWOOD & CO LTD |
|---|---|
| Length mm | 100mm |
| Width mm | 5.5mm |
| Product Material | Case: Core Hardened Carbon Steel |
| Product Colour | Silver |
| Product Net Weight kg | 1.664 |
| Manufacturer Bullet 1 | Fixed Washer Dia. mm : 12.00 |
| Manufacturer Bullet 2 | Point Type : Self-Drilling No.5 |
| Manufacturer Bullet 3 | Exterior plating gives a reliable and durable corrosion resistant coating which resists 500 hours salt-spray |
| Manufacturer Bullet 4 | Effective Thread Length mm : 53 *P/T |
| Product Size | 5.5mm x 100mm |
| Manufacturer Bullet 5 | Max Drilling Thickness mm : 12.0 |
| Packaged Length mm | 190mm |
| Packaged Width mm | 90mm |
| Packaged Height mm | 90mm |
| Product Certifications | BS EN 14592:2008 BS EN 10666 (DIN 7504) |
| Pallet Cage Width mm | 279mm |
| Pallet Cage Length mm | 394mm |
| Pallet Cage Height mm | 206mm |
| Pallet Cage Weight kg | 20.44 |
| Pallet Cage Barcode | 5055331815064 |
