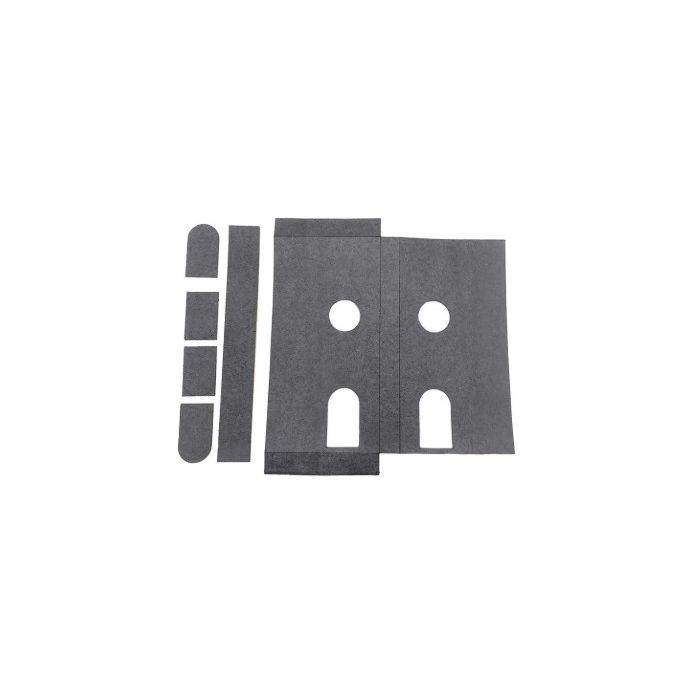

Intumescent Pad for DIN Std Lock Case

Intumescent Pad for DIN Std Lock Case

Product Features/Specifications:

• FD30/60 fire-rated intumescent material for superior fire protection
• Supplied as 1 No. 85 x 165mm graphite intumescent DIN lock pad complete with strike plastic
• Self-adhesive backing for quick and simple installation – just peel and stick
• Minimal rebate required for fitting
• Available in 0.8mm, 1.0mm, and 2.0mm thickness options
• Delivery options: FREE (3–5 Days) or FAST (48hr Tracked)

Applications and Versatility:

• Tested to BS 476 Part 22: 1987 – 30/60 minute fire rating
• Tested to BS EN 1634-1:2014 – 30/60 minute fire rating
• Provides comprehensive coverage for all lock sections, including strike plate and complete body wrap
• Suitable for use in fire-rated door assemblies requiring DIN standard lock case protection

Features & Benefits:

• Certified Safety: Independently tested to meet UK and EU fire safety standards
• Quick Installation: Self-adhesive design allows fast and hassle-free fitting
• Flexible Options: Available in multiple thicknesses to suit different lock case requirements
• Full Protection: Covers both strike plate and full lock case body for complete fire resistance
• Reliable Performance: Expands when exposed to heat, sealing gaps to slow fire and smoke spread

Technical Specifications:

• Product Type: Intumescent Pad for Lock Case
• Dimensions: 85mm x 165mm
• Thickness Options: 0.8mm, 1.0mm, 2.0mm
• Material: Graphite Intumescent (self-adhesive)
• Fire Rating: FD30/60 (30 and 60 minutes)
• Standards: BS 476 Part 22:1987, BS EN 1634-1:2014
• Compatibility: DIN Standard Lock Cases
• Included: Lock pad with strike plastic

Additional Information:

This product is easy to move by hand, making installation and transportation
hassle-free.
