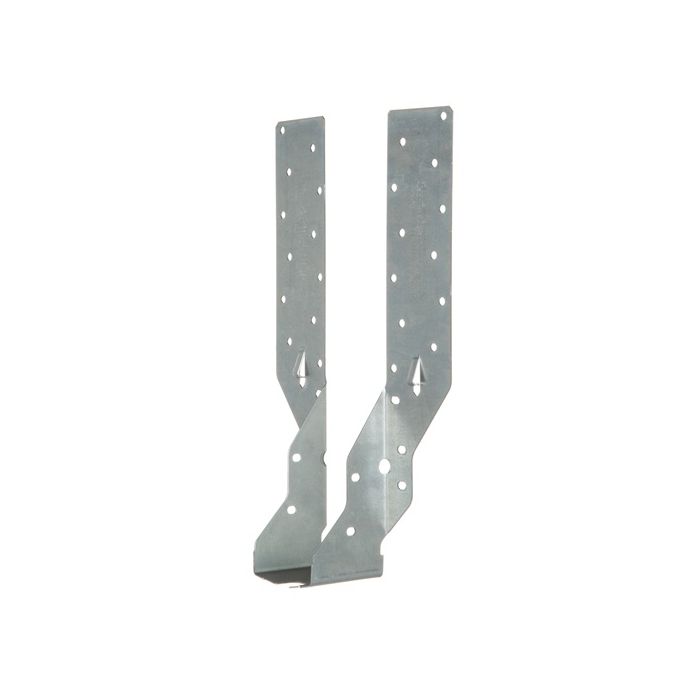

75mm Timber to Timber Joist Hanger
SKU
JPL-40004862
75mm Timber to Timber Joist Hanger
Product Features / Specifications:
This Timber to Timber Light Duty Hanger (Standard Leg) features a 38mm width and is constructed from 0.9mm thick galvanised steel for excellent durability and corrosion resistance. It is designed with wider 50mm strap legs to allow increased nail spacing, enhancing load-bearing performance. The hanger accommodates joist depths from 150mm to 250mm, and its leg length can be adjusted by wrapping over to suit varying joist heights, offering flexibility on-site.
Applications and Versatility:
Ideal for timber framing, floor joist installation, decking, and general carpentry projects, the 75mm Timber to Timber Joist Hanger JHA270/75 provides a strong and reliable connection between timber members. Its adjustable design makes it suitable for both residential and light commercial applications, offering versatility across multiple woodworking and construction tasks.
Features & Benefits:
- Standard leg design for light-duty timber-to-timber connections
- Wider 50mm strap legs allow increased nail spacing for enhanced strength
- Adjustable leg length accommodates joist depths from 150mm to 250mm
- Constructed from 0.9mm galvanised steel for durability and corrosion resistance
- Simple to install and adaptable to various timber construction projects
- Reliable solution for floor joists, decking, and structural timber applications
Technical Specifications:
- Product Type: Timber to Timber Joist Hanger
- Width: 38mm
- Material: 0.9mm galvanised steel
- Strap Legs: 50mm wide for improved nail spacing
- Joist Depth Compatibility: 150mm – 250mm
- Leg Adjustment: Wrap-over design for varying heights
- Usage: Light-duty timber-to-timber applications
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Show more +
75mm Timber to Timber Joist Hanger
Product Features / Specifications:
This Timber to Timber Light Duty Hanger (Standard Leg) features a 38mm width and is constructed from 0.9mm thick galvanised steel for excellent durability and corrosion resistance. It is designed with wider 50mm strap legs to allow increased nail spacing, enhancing load-bearing performance. The hanger accommodates joist depths from 150mm to 250mm, and its leg length can be adjusted by wrapping over to suit varying joist heights, offering flexibility on-site.
Applications and Versatility:
Ideal for timber framing, floor joist installation, decking, and general carpentry projects, the 75mm Timber to Timber Joist Hanger JHA270/75 provides a strong and reliable connection between timber members. Its adjustable design makes it suitable for both residential and light commercial applications, offering versatility across multiple woodworking and construction tasks.
Features & Benefits:
- Standard leg design for light-duty timber-to-timber connections
- Wider 50mm strap legs allow increased nail spacing for enhanced strength
- Adjustable leg length accommodates joist depths from 150mm to 250mm
- Constructed from 0.9mm galvanised steel for durability and corrosion resistance
- Simple to install and adaptable to various timber construction projects
- Reliable solution for floor joists, decking, and structural timber applications
Technical Specifications:
- Product Type: Timber to Timber Joist Hanger
- Width: 38mm
- Material: 0.9mm galvanised steel
- Strap Legs: 50mm wide for improved nail spacing
- Joist Depth Compatibility: 150mm – 250mm
- Leg Adjustment: Wrap-over design for varying heights
- Usage: Light-duty timber-to-timber applications
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Features
| MPN | JHA270/75 |
|---|---|
| Width | 75 mm |
| Brand | Vista Engineering |
