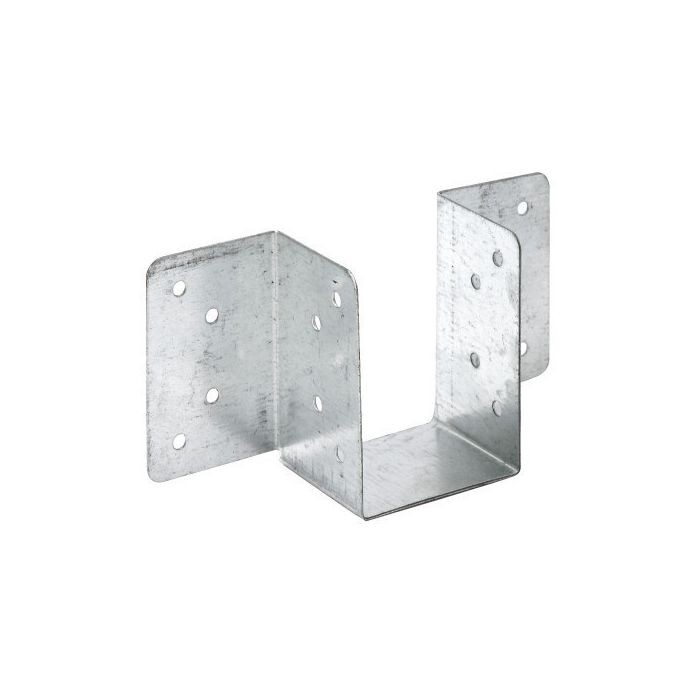

MH50 50mm (2") Mini Joist Hanger

MH50 50mm (2") Mini Joist Hanger

Product Features/Specifications:

• Designed for hanging joists up to 100mm high
• Manufactured from 0.8mm thick galvanised steel for strength and corrosion resistance
• Compact design ideal for smaller, light-duty applications
• Pre-punched with 16 fixing holes for versatile installation
• Suitable for use with 30 x 3.75mm sherardised square twisted nails
• 40mm wide bearing surface ensures a secure and stable connection
• Commonly used for decking and ceiling hatch trimming

Applications and Versatility:

The MH50 mini joist hanger is an excellent choice for a variety of lighter timber-to-timber construction projects. It is widely used for:

• Decking installations
• Trimming around ceiling hatches
• Light timber frameworks
• General carpentry tasks requiring small but strong joist support

Features & Benefits:

• Durable Material: Galvanised steel construction resists corrosion for a longer service life
• Compact & Practical: Perfect size for lighter applications without compromising strength
• Easy Installation: Pre-punched fixing holes allow fast and accurate fitting
• Secure Connection: 40mm bearing surface provides a solid and sturdy hold
• Versatile Use: Ideal for both professional tradespeople and DIY users

Technical Specifications:

• Brand: [Insert Manufacturer if known]
• Product Type: Mini Joist Hanger
• Model: MH50
• Size: 50mm (2")
• Maximum Joist Height: 100mm
• Material Thickness: 0.8mm
• Finish: Galvanised Steel
• Bearing Surface: 40mm
• Fixing Holes: 16 (pre-punched)
• Fixings Required: 30 x 3.75mm sherardised square twisted nails
• Typical Applications: Decking, ceiling hatch trimming, light-duty timber-to-timber connections

Additional Information:

This product is easy to move by hand, making installation and transportation
hassle-free.
