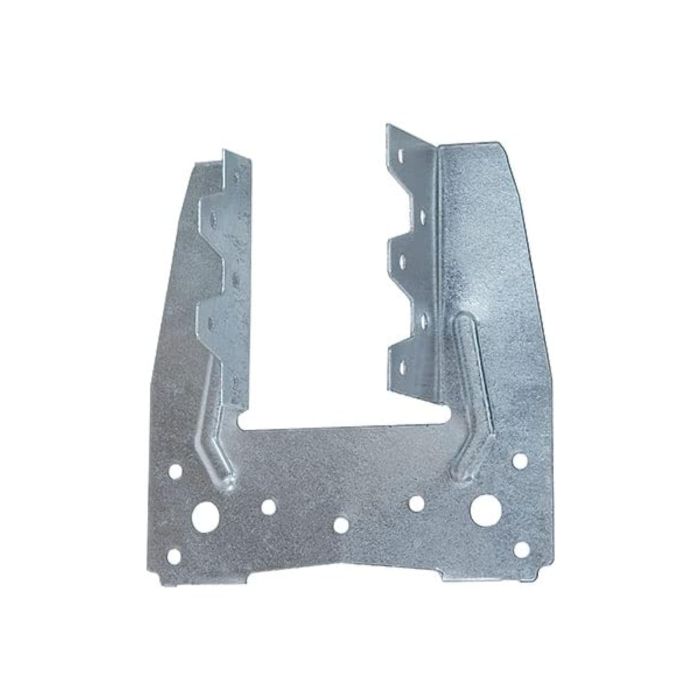

TC50 50mm Roofing Truss Clip (Vista Eng)

TC50 50mm Roofing Truss Clip (Vista Eng)

Product Features/Specifications:

• Provides an inexpensive and effective method of fixing trussed rafters to wallplates
• Conforms to BS 5268: Part 3 recommendations
• Multi-purpose connector suitable for general applications where timber members cross
• Manufactured from robust galvanised steel for long-lasting strength and protection

Applications and Versatility:

• Engineered for strength and ease of use, the TC50 Roofing Truss Clip is suitable for both roofing and general timber connections:
• Produced from 0.9mm thick galvanised steel to BS EN 10346:2009 + G275 as standard
• Available in stainless steel upon request for enhanced durability in exposed environments

Fixing options:

• Type A: 30mm x 3.75mm Sheradised Square Twist Nails (supplied loose for manual fixing)
• Type B: 35mm x 3.75mm Sheradised Square Twist Nails (supplied collated for nail gun fixing)
• All pre-punched holes must be filled for maximum performance

Features & Benefits:

• Affordable and effective solution for truss-to-wallplate fixing
• Corrosion-resistant galvanised finish for long service life
• Flexible design suitable for both roofing and general timber applications
• Compatible with both manual and nail gun fixings for installation efficiency
• Multi-purpose use reduces the need for multiple connector types on-site

Technical Specifications:

• Product Code: TC50
• Dimensions: 50mm
• Material: 0.9mm galvanised steel (DX51D + G275)
• Compliance: BS 5268: Part 3 & BS EN 10346:2009
• Fixing Options: Type A (30mm x 3.75mm nails) or Type B (35mm x 3.75mm nails)
• Availability: Stainless steel option to order

Additional Information:

This product is easy to move by hand, making installation and transportation
hassle-free.
