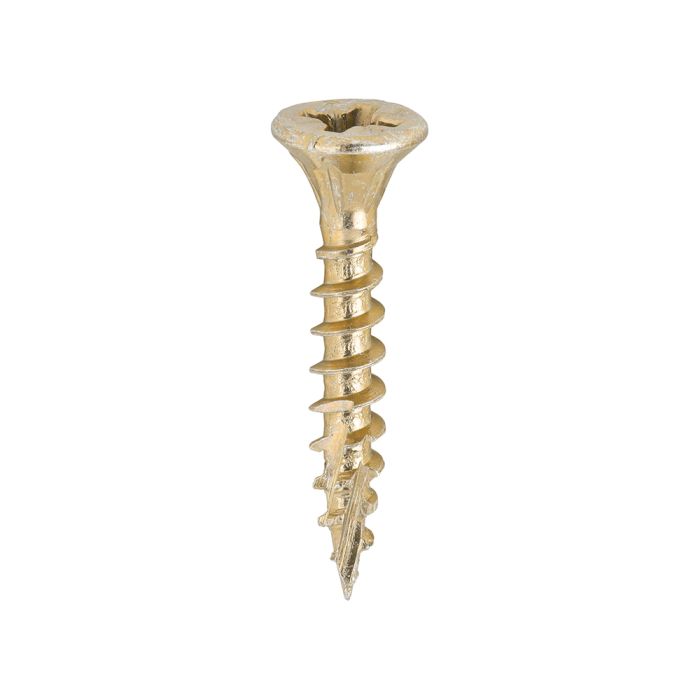

Timco Classic C2 Screw ZYP 4.0 x 25mm CSK PZ2 40025C2
SKU
JPL-40004545
Timco Classic C2 Screw ZYP 4.0 x 25mm CSK PZ2 40025C2
Product Features/Specifications:
A premium fixing solution, this screw combines advanced thread design with a protective Zinc Yellow Passivated (ZYP) coating. The dual angle full thread maximises holding power, making it ideal for high-load environments such as hinges, brackets, and furniture fittings.
Detailed Product Benefits:
- Deep Pozi Recess (PZ2): Prevents cam-out for reliable and controlled driving.
- Countersinking Ribs: Provides flush finishes, prevents timber splitting, and reduces surface damage.
- High-Molecular Polymer Lubricant Coating: Reduces driving torque by up to 52% and offers rust protection 20x greater than standard zinc plating.
- Dual Angle Thread: Increases performance with excellent pull-out resistance.
- Patented Twin-Cut Technology: Ensures quick bite, rapid insertion, and reduces timber splitting.
- Threading: Screws up to 75mm are fully threaded; screws 80mm and above feature a 70mm thread.
- Material & Finish: Zinc Yellow Passivated for corrosion resistance and long-lasting performance.
- Recess Type: Pozi (PZ2).
- Point Type: Twin-Cut for fast, efficient fixing.
Applications and Versatility:
Engineered for versatility across a wide range of materials and projects, including:
- Wood, chipboard, MDF, and hardwoods
- Plastic fittings and sheet materials
- Thin sheet metal and masonry (with plugs)
- Joinery, carpentry, and general construction tasks
- High-load fixings such as hinges, brackets, and furniture assembly
Technical Specifications:
- Size: 4.0 x 25mm
- Head Type: Countersunk (CSK)
- Recess Type: Pozi (PZ2)
- Point Type: Twin-Cut
- Coating: Zinc Yellow Passivated (ZYP) with polymer lubricant
- Thread: Dual Angle, Fully Threaded (up to 75mm)
- Corrosion Resistance: Up to 20x stronger than standard zinc plating
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Show more +
Timco Classic C2 Screw ZYP 4.0 x 25mm CSK PZ2 40025C2
Product Features/Specifications:
A premium fixing solution, this screw combines advanced thread design with a protective Zinc Yellow Passivated (ZYP) coating. The dual angle full thread maximises holding power, making it ideal for high-load environments such as hinges, brackets, and furniture fittings.
Detailed Product Benefits:
- Deep Pozi Recess (PZ2): Prevents cam-out for reliable and controlled driving.
- Countersinking Ribs: Provides flush finishes, prevents timber splitting, and reduces surface damage.
- High-Molecular Polymer Lubricant Coating: Reduces driving torque by up to 52% and offers rust protection 20x greater than standard zinc plating.
- Dual Angle Thread: Increases performance with excellent pull-out resistance.
- Patented Twin-Cut Technology: Ensures quick bite, rapid insertion, and reduces timber splitting.
- Threading: Screws up to 75mm are fully threaded; screws 80mm and above feature a 70mm thread.
- Material & Finish: Zinc Yellow Passivated for corrosion resistance and long-lasting performance.
- Recess Type: Pozi (PZ2).
- Point Type: Twin-Cut for fast, efficient fixing.
Applications and Versatility:
Engineered for versatility across a wide range of materials and projects, including:
- Wood, chipboard, MDF, and hardwoods
- Plastic fittings and sheet materials
- Thin sheet metal and masonry (with plugs)
- Joinery, carpentry, and general construction tasks
- High-load fixings such as hinges, brackets, and furniture assembly
Technical Specifications:
- Size: 4.0 x 25mm
- Head Type: Countersunk (CSK)
- Recess Type: Pozi (PZ2)
- Point Type: Twin-Cut
- Coating: Zinc Yellow Passivated (ZYP) with polymer lubricant
- Thread: Dual Angle, Fully Threaded (up to 75mm)
- Corrosion Resistance: Up to 20x stronger than standard zinc plating
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Features
| Manufacturer Name | T I MIDWOOD & CO LTD |
|---|---|
| MPN | 40025C2 |
| Length mm | 25mm |
| Width mm | 4mm |
| Product Material | Carbon Steel |
| Product Net Weight kg | 0.28 |
| Manufacturer Bullet 1 | Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw |
| Manufacturer Bullet 2 | Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage |
| Manufacturer Bullet 3 | Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating |
| Manufacturer Bullet 4 | Dual angle thread for ultimate performance and exceptionally high pull-out resistance |
| Product Size | 4mm x 25mm |
| Manufacturer Bullet 5 | Patented twin cut technology for rapid "pick-up" and reduces timber splitting |
| Packaged Length mm | 88mm |
| Manufacturer Bullet 6 | All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length |
| Packaged Width mm | 56mm |
| Packaged Height mm | 44mm |
| Product Certifications | BS EN 14592:2008 |
| Manufacturer Bullet 7 | Recess Type : Pozi |
| Pallet Cage Width mm | 278mm |
| Manufacturer Bullet 8 | Point Type : Twin-Cut |
| Pallet Cage Length mm | 390mm |
| Pallet Cage Height mm | 204mm |
| Pallet Cage Weight kg | 22.14 |
| Pallet Cage Barcode | 5055331894472 |
