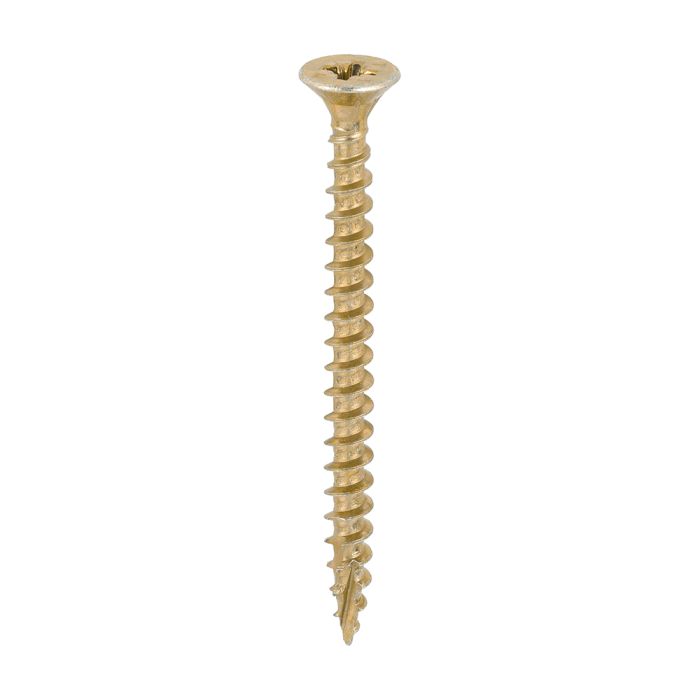

Timco Classic C2 Screw ZYP 5.0 x 60mm CSK PZ2 50060C2
SKU
JPL-40004560
Timco Classic C2 Screw ZYP 5.0 x 60mm CSK PZ2 50060C2
Product Features/Specifications:
A premium multi-material screw featuring the award-winning C2 twin-cut technology. The dual angle full thread design ensures maximum pull-out strength with every fixing. Perfectly suited for demanding applications where superior holding power is essential, such as hinges, brackets, and high-load environments.
Detailed Product Benefits:
- Ribs under head – Ensures improved countersinking for a smooth, flush finish while preventing splitting and surface damage.
- High-molecular polymer coating – Reduces insertion torque by up to 52% and extends rust resistance up to 20 times longer than standard zinc plating.
- Dual angle thread – Provides exceptional grip with maximum pull-out resistance for ultimate reliability.
- Patented twin-cut technology – Enables rapid "pick-up" while significantly reducing timber splitting.
- Thread lengths – Screws up to 75mm are fully threaded, while screws 80mm and above feature a 70mm thread length for optimized performance.
- Recess type: Pozi (PZ2)
- Point type: Twin-Cut
Applications and Versatility:
- The Timco Classic C2 Screw is highly versatile and suitable for a wide range of applications, including:
- Fixing door hinges and brackets
- High-load structural applications
- Joinery and carpentry projects
- Securing timber, chipboard, and composite materials
- Professional trade use and demanding DIY projects
Technical Specifications:
- Size: 5.0 x 60mm
- Drive: PZ2 (Pozi)
- Head Type: Countersunk (CSK)
- Coating: Zinc & Yellow Passivated (ZYP) with high-molecular polymer lubricant
- Thread: Dual angle, fully threaded up to 75mm / 70mm thread length above 80mm
- Point: Twin-Cut for reduced splitting and quick start
- Corrosion Resistance: Up to 20x longer than standard zinc plating
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Show more +
Timco Classic C2 Screw ZYP 5.0 x 60mm CSK PZ2 50060C2
Product Features/Specifications:
A premium multi-material screw featuring the award-winning C2 twin-cut technology. The dual angle full thread design ensures maximum pull-out strength with every fixing. Perfectly suited for demanding applications where superior holding power is essential, such as hinges, brackets, and high-load environments.
Detailed Product Benefits:
- Ribs under head – Ensures improved countersinking for a smooth, flush finish while preventing splitting and surface damage.
- High-molecular polymer coating – Reduces insertion torque by up to 52% and extends rust resistance up to 20 times longer than standard zinc plating.
- Dual angle thread – Provides exceptional grip with maximum pull-out resistance for ultimate reliability.
- Patented twin-cut technology – Enables rapid "pick-up" while significantly reducing timber splitting.
- Thread lengths – Screws up to 75mm are fully threaded, while screws 80mm and above feature a 70mm thread length for optimized performance.
- Recess type: Pozi (PZ2)
- Point type: Twin-Cut
Applications and Versatility:
- The Timco Classic C2 Screw is highly versatile and suitable for a wide range of applications, including:
- Fixing door hinges and brackets
- High-load structural applications
- Joinery and carpentry projects
- Securing timber, chipboard, and composite materials
- Professional trade use and demanding DIY projects
Technical Specifications:
- Size: 5.0 x 60mm
- Drive: PZ2 (Pozi)
- Head Type: Countersunk (CSK)
- Coating: Zinc & Yellow Passivated (ZYP) with high-molecular polymer lubricant
- Thread: Dual angle, fully threaded up to 75mm / 70mm thread length above 80mm
- Point: Twin-Cut for reduced splitting and quick start
- Corrosion Resistance: Up to 20x longer than standard zinc plating
Additional Information:
This product is easy to move by hand, making installation and transportation
hassle-free.
Need assistance or
ready to order?
Contact us at:
- Bootle – 0151 525 4181
- Port Sunlight – 0151 645 4444
- E mail us at: [email protected]
Features
| Manufacturer Name | T I MIDWOOD & CO LTD |
|---|---|
| MPN | 50060C2 |
| Length mm | 60mm |
| Width mm | 5mm |
| Product Net Weight kg | 1.02 |
| Manufacturer Bullet 1 | Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage |
| Manufacturer Bullet 2 | Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating |
| Manufacturer Bullet 3 | Dual angle thread for ultimate performance and exceptionally high pull-out resistance |
| Manufacturer Bullet 4 | Patented twin cut technology for rapid "pick-up" and reduces timber splitting |
| Product Size | 5mm x 60mm |
| Manufacturer Bullet 5 | All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length |
| Packaged Length mm | 138mm |
| Manufacturer Bullet 6 | Recess Type : Pozi |
| Packaged Width mm | 94mm |
| Packaged Height mm | 92mm |
| Product Certifications | BS EN 14592:2008 |
| Manufacturer Bullet 7 | Point Type : Twin-Cut |
| Pallet Cage Width mm | 284mm |
| Pallet Cage Length mm | 392mm |
| Pallet Cage Height mm | 204mm |
| Pallet Cage Weight kg | 17.32 |
| Pallet Cage Barcode | 5055331894663 |
