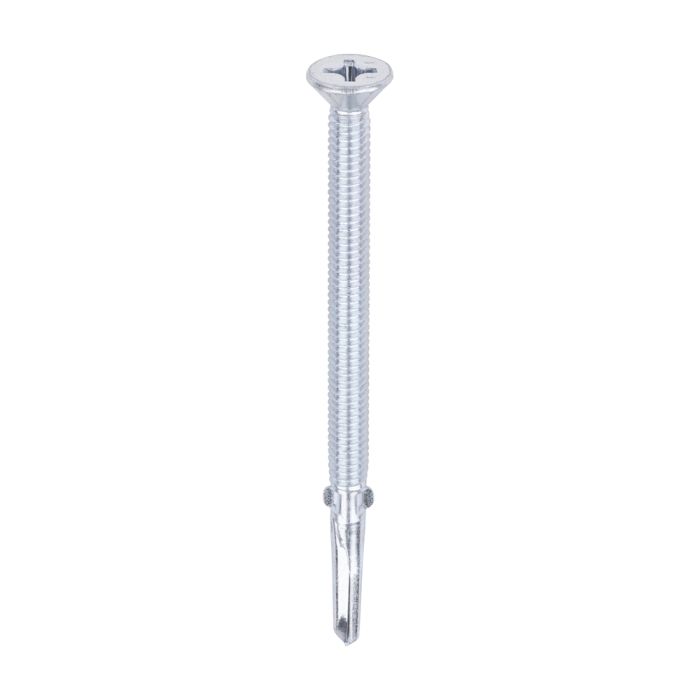

Timco HW85B Wing Tip No.5 S/Drill Screw 85mm Box/100

Timco HW85B Wing Tip No.5 S/Drill Screw 85mm Box/100

Product Features/Specifications:

• Designed to attach wood to heavy section steel (up to 12mm).
• Metric thread with wings that ream out the timber for smooth penetration.
• Wings break off upon hitting metal, allowing the thread to self-tap securely.
• Enables maximum RPM performance without risk of timber burn-out.

Detailed Product Benefits:

• Recess Type: Phillips for secure drive engagement.
• Point Type: Self-Drilling No.5 for fast, clean fixing.
• Effective Thread Length: 51mm for optimal hold.
• Max Drilling Thickness: 12.0mm heavy section steel.
• Timber Suitability: Ideal for 30–49mm timber sections.
• This combination ensures rapid installation, strong fixings, and reduced risk of splitting or damage to materials.

Applications and Versatility:

• Perfect for use in structural timber-to-steel applications, such as:
• Fixing timber battens to steel frames.
• Securing wooden sections in roofing or cladding projects.
• Heavy-duty joinery where wood-to-metal connections are required.
• Industrial and construction environments demanding maximum load-bearing capacity.

Technical Specifications:

• Length: 85mm
• Thread Type: Metric
• Recess Type: Phillips
• Point Type: Self-Drilling No.5
• Effective Thread Length: 51mm
• Maximum Drilling Thickness: 12.0mm
• Timber Suitability: 30–49mm
• Quantity: Box of 100

Additional Information:

This product is easy to move by hand, making installation and transportation
hassle-free.
